Re: S/MIME with Wanderlust



So, we found the error, good!

I could not find the buffer with the raw encrypted content.
As far as I understand, it is stored in the buffer-local variable called  "mime-view-temp-message-buffer”.

    C-h v mime-view-temp-message-buffer
tells me:

mime-view-temp-message-buffer is a variable defined in `mime-play.el'.
Its value is #<buffer  *WL:Message*-nil>
Local in buffer *Preview- *WL:Message**; global value is nil

Documentation:
Not documented as a variable.

That means the buffer with the raw decrypted content has the name: *WL:Message*-nil
But I do not know how to display this buffer. M-x b does not show this buffer because it is not global, I guess.
How can I display this buffer?

As a workaround, I used the override function for "mime-view-application/pkcs7-mime" you sent me before in order to get hold of the raw data.

I attached you the contents of the buffer  *WL:Message*-nil  in my last mail to you.

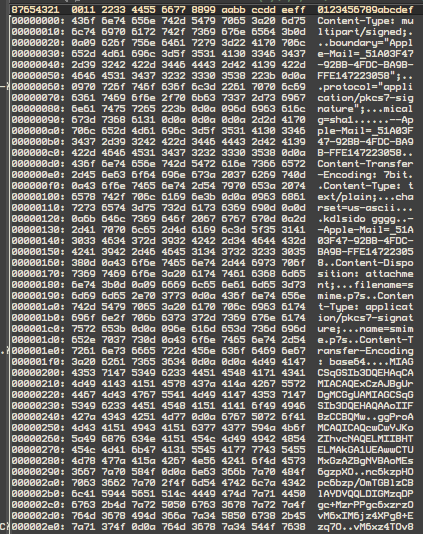

Then I went into hexl-mode as you asked me to do. The result (only the beginning) is visible  in screenshot attached below.

Finally I stored the direct output of gpgsm in a file attached below as well. The command I used was:

    gpgsm -d smime.p7m > raw_decryped_on_command_line_from_gpgsm


I hope this is all the information you need to simulate my case and to compare the outputs.


All best
mc

PNG image

Attachment: raw_decryped_on_command_line_from_gpgsm
Description: Binary data



On 03.02.2014, at 15:11, Kazuhiro Ito <kzhr@d1.dion.ne.jp> wrote:

>> 3. showing "mime-view-entity"
>>   or
>> showing "mime-view-entity-header”
>>   in new buffer
>> ==========================
>>
>> [mime-buffer-entity
>> [0 0 0 0 0 0 0]
>> #<buffer  *WL:Message*-nil>
>> ((type . message)
>>  (subtype . x-broken))
>> nil nil nil
>> ((type . attachment))
>> "7bit"
>> ((Content-Transfer-Encoding . "7bit
>> ")
>>  (Content-Disposition . "attachment;
>> \n	filename=smime.p7s
>> "))
>> nil #<buffer  *WL:Message*-nil> 1 4215 4215 4215]
>
> mime-view-entity's property shows how the raw content is parsed, and
> this result seems broken.
>
> 1. Last 4 numbers indicate positions of the beginning of headers, the
> end of headers, the beginning of body, the end of body respectively.
> The fact that last 3 numbers are equal means delimiter between headers
> and body are found at the end of the raw content, i.e. actual
> delimiter is ignored.
>
> 2. Moreover, last 3 numbers are too big.  The buffer which has 4214
> characters returns 4215 as point-max function's result.  The decrypted
> raw content actually has 4214byte.  But CRs in EOL are truncated in
> raw content's buffer.  As a result, point-max's result is more smaller
> than 4215.
>
>
> Your broken mime-view-entity's property is similar to the case that
> gpgsm append extra CR in its output.  I guess gpgsm outputs extra
> character before LF.  Please visit the decrypted raw content buffer
> according to [wl-en: 05587] and run hexl-mode to check whether there
> is garbage especially before LF.
>
>
> --
> Kazuhiro Ito
>

Attachment: smime.p7s
Description: S/MIME cryptographic signature
